In modern railway engineering, suspension systems play a critical role in ensuring ride comfort, stability, and long-term durability of rolling stock. One essential component within these systems is the chevron spring, often referred to as a V-spring due to its distinctive shape. In this blog post, we explore how these components work, where they are used, and why they remain a preferred solution in the rail industry.

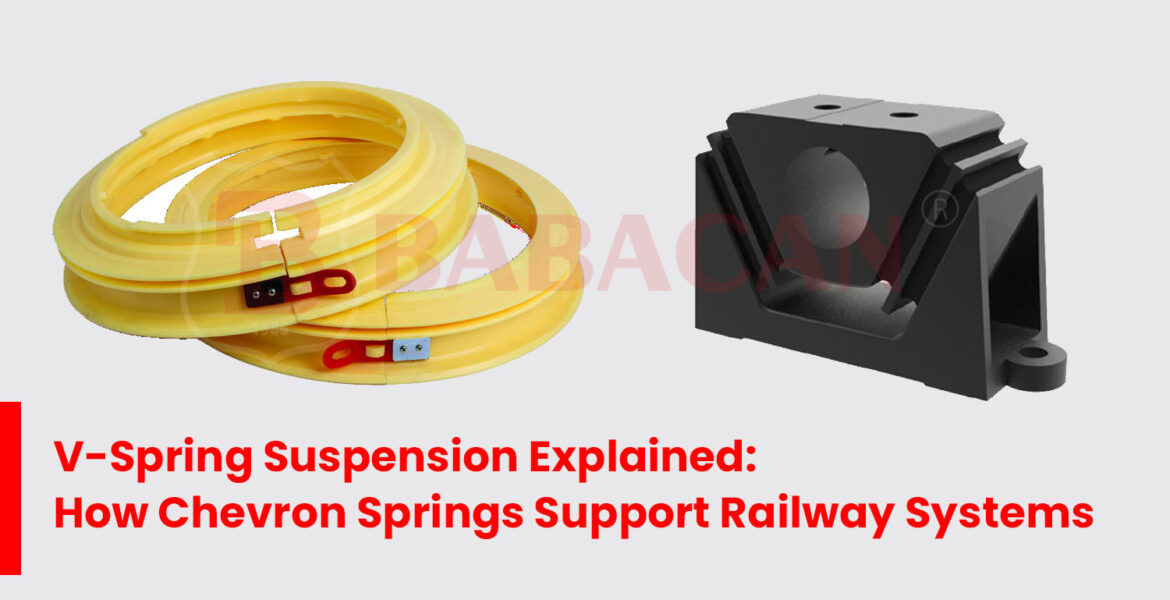

What Is a V-Spring or Chevron Spring?
A chevron spring is a rubber-metal bonded component typically installed between the bogie frame and the axle box in railway vehicles. Its “V” or chevron shape allows it to absorb both vertical and horizontal forces, providing multi-directional vibration isolation. This design enables the spring to manage load transfer effectively while improving lateral stability.
Applications in Railway Suspension Systems
Chevron springs are a core part of the primary suspension system in metro cars, light rail vehicles, freight wagons, and even high-speed trains. Their role is to:
- Absorb vibrations and shocks from the track
- Reduce noise and resonance transmission
- Protect chassis and bogie components from fatigue
- Improve passenger comfort and safety
Why V-Springs Are Preferred
Compared to traditional metal coil or leaf springs, chevron springs offer several advantages:
- Compact and lightweight design
- Multi-axial load absorption capacity
- Excellent performance in harsh climates and environments
- Lower maintenance and longer service intervals
Material Composition and Engineering
V-springs are manufactured using high-quality elastomers chemically bonded to pre-treated metal plates. Materials such as natural rubber, EPDM, or NBR are selected based on temperature resistance, compression set, and dynamic fatigue behavior. Each unit is carefully tested for deformation, stiffness, and failure thresholds to meet global railway standards.
Future of Suspension in Rail Systems
As railway systems evolve toward higher speeds, improved safety, and increased energy efficiency, the role of components like the chevron spring becomes even more crucial. With innovations in elastomer technology and predictive maintenance systems, V-spring suspensions will continue to be a trusted solution for manufacturers and operators alike.
At Babacan Rubber, we produce OEM-quality chevron springs tailored for rail applications across global markets. Contact us to learn more about our custom suspension components and compliance with EN 45545-2 fire safety norms.
